PRODUCT DESCRIPTION

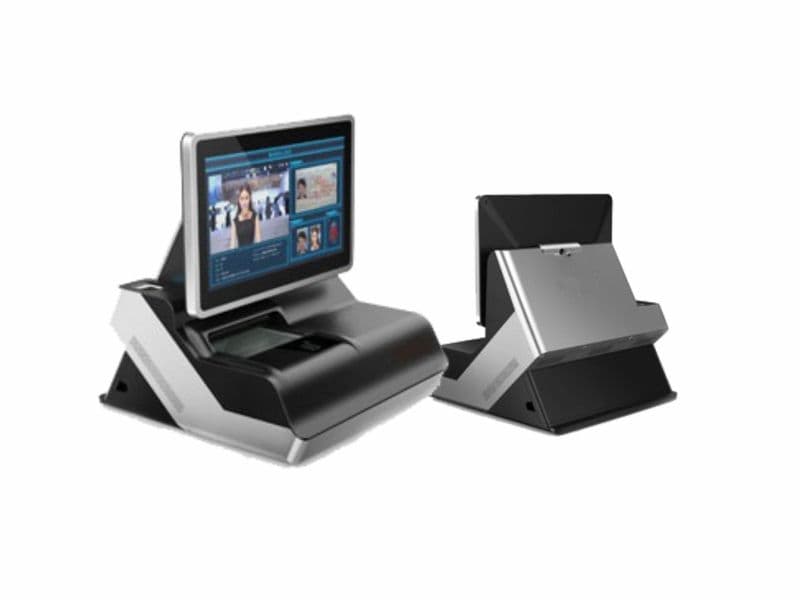

The Dr is a compact PC designed for versatile transactional purposes, especially for enrollment, electronic ID (KTP-el) reading, driver’s license (SIM) verification, and passport authentication. It comes equipped with a fingerprint scanner, electronic ID reader, barcode scanner, OCR (Optical Character Recognition), and receipt printer. Powered by Windows 10, it allows users to easily customize applications to suit their needs. The Dr is ideal for use in banking, hotels, airports, and other industries requiring secure and efficient identity verification and transaction handling.

SPECIFICATIONS

Dimensions: 372mm x 361mm x 392mm

CPU: Bay Trail J1900, 2.0GHz

Memory: 4GB RAM

Storage: 120GB HDD

O.S: Windows 10 with Visitor Registration Software

Display: 13.3" IPS touchscreen (1920x1080 pixels)

Camera: 5MP CMOS wide-angle (90°) with Auto Focus (AF)

Printer: Thermal printer supporting 60mm paper width

Scanner: Document scanning resolution >300dpi

Barcode Reader: Infrared, supports fast and automatic scanning

OCR: Optical CMOS 3MP, scanning area 127x96 mm, supports JPG and BMP formats

Supported OS: Windows 7 and above, with ID Visitor Registration software

Connectivity: LAN port (RJ45), Optional: WLAN, WiFi, GPS, Bluetooth 4.0

Slots: 2x SAM slots, 1x MicroSD slot, 1x USB port

Interfaces: 1x RJ45, 2x USB 2.0, 2x USB 3.0

Power: AC 100-220V (12V/2A)

Reading Distance: ≥ 5cm
