PRODUCT DESCRIPTION

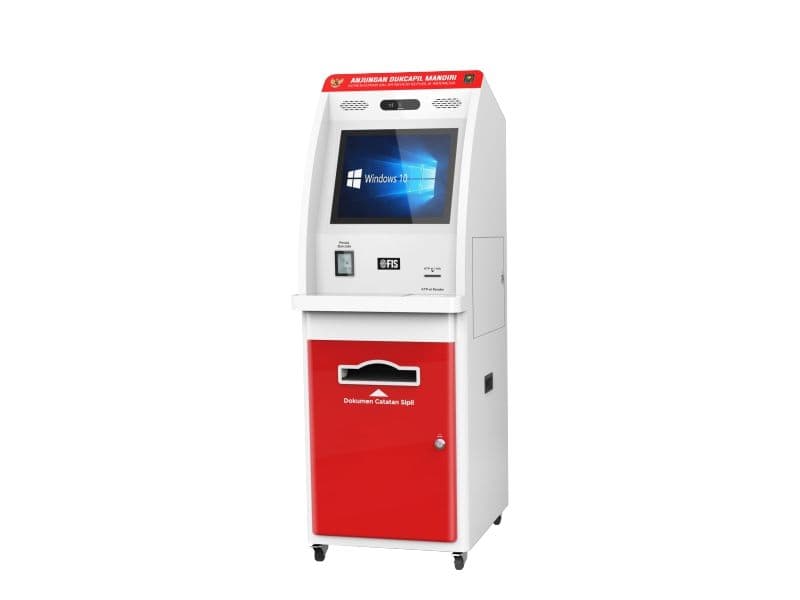

The ADM Kiosk (Anjungan Dukcapil Mandiri) is a self-service kiosk designed for printing civil registration documents. It features a touchscreen monitor, camera, electronic ID (KTP-el) scanner, QR code scanner, document and card printers, and operates on the Windows 10 operating system. The ADM Kiosk allows users to print essential civil documents, such as Family Cards (Kartu Keluarga), Child Identity Cards (Kartu Identitas Anak), and various certificates (Birth, Death, Divorce, Adoption, etc.). It is designed to streamline public administration processes, making it easier and more efficient for users to access their personal records.

SPECIFICATIONS

Dimensions: 1880mm x 820mm x 635mm

CPU: Intel Core i5, 3.0GHz

O.S: Windows 10 (64-bit, Original)

Display: 19" LED touchscreen

Camera: 1080p, anti-backlight

Memory: 8GB RAM

Storage: 128GB SSD

Document Printer: A4 laser printer, Resolution: 600dpi, Capacity: 2,600 sheets

Card Printer: Supports KTP-el printing with encoder, Capacity: 200 cards, Speed: 100 cards/hour, Dual input hoppers, Resolution: 300dpi

QR Scanner: 360° scanning support (from paper and mobile screens)

Speaker: Double channel

Card Reader: Certified KTP-el reader (BPPT certified)

Interfaces: 2x USB 2.0, 1x RJ45

Material: Metal with 1.5mm sheet thickness
