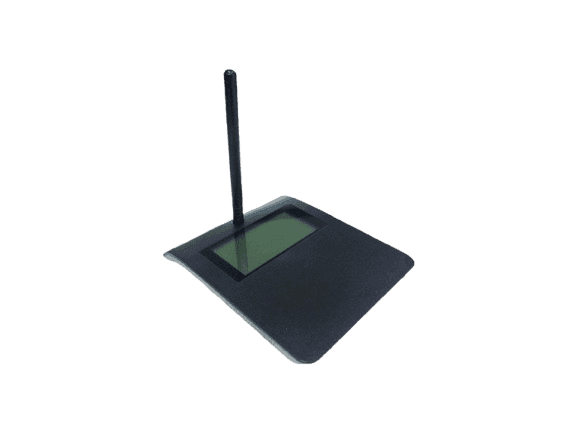

PRODUCT DESCRIPTION

Designed to provide users with security and a signing experience similar to pen-on-paper while ensuring robust verification and identification. The IDPAY Digital solution transforms conventional workflows into simpler, faster, and more efficient processes. Features: World-class capacitive sensor, Exceptional durability for millions of touches, Backlight control and image quality enhancement technology, Innovative cable pressure induction technology that does not require a power supply. Applications: Paperless bank signatures, Paperless endorsements, Identity verification and signing, Interview management systems in correctional facilities

SPECIFICATIONS

Screen Size: 3.5 inches

Screen Protection: 6H tempered glass, anti-glare

Pixel Size: 0.1506(H) x 0.1432mm(V)

Contrast Ratio: 800:1 (typical)

Brightness: LED backlight, 200 cd/m²

Response Time: 8ms (typical)

Sensor Type: Viewing angles 80°/80°/70°/60° (up/down/left/right) @ CR≥10

LED Lifetime: 2000 hours

Touch Method: Electromagnetic induction / capacitive touch

Electromagnetic Technology: Passive wireless technology

Resolution: Passive wireless technology

Pressure Levels: 1024 levels

Reading Speed: 200 PPS (Points Per Second)

Accuracy Rate: ±0.5mm (interzonal region), ±1mm (margin edge 5mm)

Angle of Indication: ±45°

Inductive Height: 5-15 mm

Interface: USB

Supported Operating Systems: Windows 8/7/Vista/XP (32/64 bit) and above

Power Supply Type: USB-powered

Input Voltage: DC 5V

Output Power: <5W
