PRODUCT DESCRIPTION

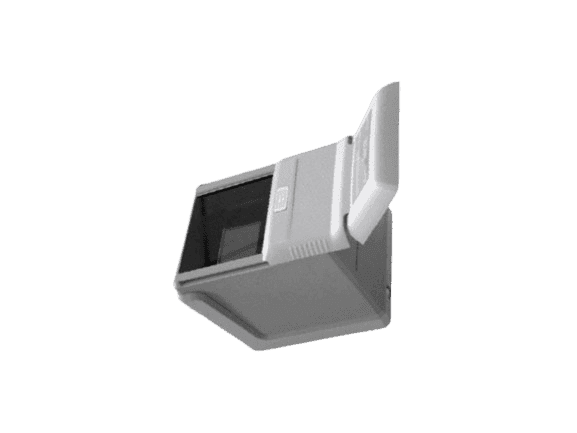

Is a biological identification product developed and produced by AIB1, which can support the flat scanning of left and right four fingers, double-thumb. It also supports single finger rolling scanning. (Image scanning and RFID card is available for customized application).

SPECIFICATIONS

Capture area: 81*76 mm

Image pixel: 1600*1500 pixel

Resolution: 500dpi

Gray level: 256

Interface: USB 2.0

Storage temperature: 0°C~50°C

Operating temperature: 10°C~40°C

Humidity range: 10%~90%

Standards: Comply with the "Technical specifications (GA/T 625-2006] and application program interface for live fingerprint image capture"(GA/T 626-2006)

Image software: Provide image scan test procedures and SDK

Related software: Provide rolling scan mozaic software Provide software which can separate four fingers image
