PRODUCT DESCRIPTION

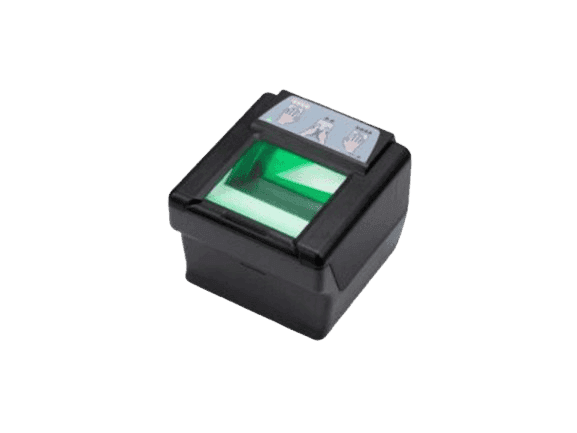

Is designed to capture single and 10 fingerprint (4-4-2 and rolled fingerprints) with state-of-the art optical technology and precise image processing technology. AlBI F900 captures high quality 4 fingerprints image complying with FBI's EBTS/F standard in about 1 second. Besides the 81.20 x 76.20 mm scanning area for flat fingerprints capture, also captures fingerprint in a 40.64x 38.10 mm scanning area to create a rolling fingerprint image. The fully programmable LEDs, buttons and acoustic buzzer provide system developers to design an intuitive user interface and experience. All these features make AlBI F900 the most cost effective and affordable solution for large scale fingerprint identification system.

SPECIFICATIONS

Dimension (LWH): 152*1598155 MM

Capture mode: Optical press/roll

Fingerprint image size: 1600*1500 pixel

Image resolution: 500 dpi

Gray level: 256

Fingerprint img distortion: ≤2%

Communication interface: USB 1.0 / 2.0

O.S: Windows XP/2003 (32/64bit), Windows Vista/2008 (32/64bit), Windows 7/8 (32/64bit), Linux
