SPECIFICATIONS

O.S

Android 9.X secure payment system

LCD screen

Main screen: 10. 1-inch IPS LCD (800*1280)

Capacitive touch screen, support multi touch

Secondary screen (optional): 10.1-inch IPS- LCD screen (800*1280)

Capacitive touch screen, support multi touch

Communication Method

Ethernet, Wi-Fi 2.4G/5G dual-band,

Support Bluetooth 4.2, 4G full network access

Built-in GPS, support Beidou, GLONASS

Accessories

DC12V/2. 5A power adapter

USB data cable (optional)

Amount input numeric keypad (optional)

Financial password keyboard with contactless card reader (optional)

Processor

High-speed octa-core processor + 32 bit security co-precessor

Face Camera

3D structured light camera

Support live detection, support scan code

Binocular camera (optional)

Audio

High-powered speakers,

Support recording and voice playback

Storage

2GB RAM, 16GB Flash

Scanning Camera

Support one-dimensional code, two-dimensional code

Physical Interface

2 USB Type A ports, 1 USB Type A plug and

play User port, 1 RJ11 type R$232 serial

port, 1 RJ45 Ethernet port, 1 DC power

port, 1 Micro USB download and debug port

Size

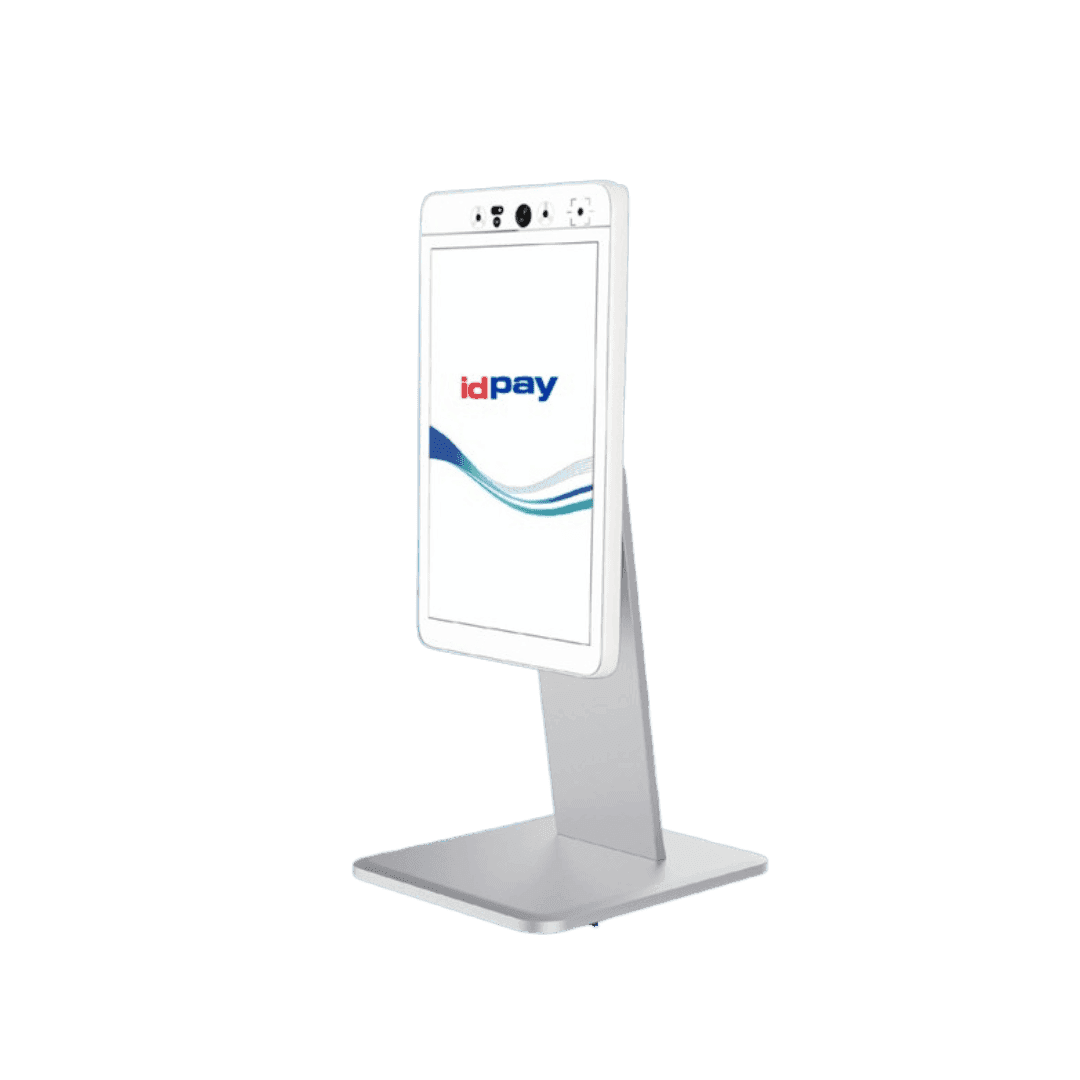

Desktop: 175mm (L) x 205mm (W) x 405mm (H)

Pole: 170mm (L) x 200mm (W) x 610mm (H)

Wall Mount: 155mm (L) x 34mm (W) x 270mm (H)

Double-sided screen: 240mm (L) x 250mm (W) x 330mm (H)

Memory

Expandable MicroSD with 128GB support

Button

Power button, Function button

Power Supply

Input: AC100^240V/0. 7A 50/60Hz

Output: DC12V/2. 5A power adapter

Weight

Tabletop 2kg; Standing pole: 3kg

Wall hanging: 800g; double sided screen: 3. 38kg
